Signal Detection
Blind, multi-scale detection of known, unknown, intermittent, and frequency-hopping transmissions — down to 0 dB C/N and below the noise floor.
NovaGrid Est. 2002 · Brittany, France
Signal intelligence
in non-cooperative
environments.
Digital Processing for Signal Intelligence
Advanced software and integrated systems that let operators detect, identify, analyze, geolocate, monitor, and exploit complex radio and satellite communications.
Core capabilities 07 disciplines
From raw spectrum to actionable intelligence.
NovaGrid engineers the full chain — detection, analysis, geolocation, and monitoring — around blind digital signal processing that assumes no prior knowledge of the signals it encounters.
Signal Analysis
Automatic identification of modulation, constellation, coding, framing, and MAC protocols, with estimation of symbol rate, bandwidth, SNR and Eb/N₀.
Passive Geolocation
TDOA/FDOA hyperbolic geolocation of transmitters relayed by satellite transponders, with co-orbit estimation and reference-free operation.
Satellite Payload Monitoring
2D time-frequency carrier & spectrum monitoring across full transponders, comparing live measurements against the declared mission plan.
Spectrum Surveillance
Continuous wideband surveillance with autonomous noise-floor estimation, interference and jammer characterization.
Mission Planning
A high-level planning environment where operators configure missions — not signal-processing algorithms.
Simulation
Full PHY and MAC radio-scene simulation for algorithm development, system validation, and operator training.
Product categories
Three domains. One ecosystem.
C · X · Ku · Ka
Satellite Products
Detection, analysis, geolocation, and carrier monitoring for satellite communications.
HyperMon · HyperLoc · HyperCSM HF 3–30 MHzTerrestrial Products
Massive, real-time HF monitoring and interception across the entire short-wave spectrum.
Vulture Software · SystemsOther Products
Specialist tools and turnkey hardware — spectrum analysis, protocol discovery, simulation.
HyperSpectrum · HyperStream · HyperSimHyperSuite Software ecosystem
Configure missions,
not algorithms.
NovaGrid's software ecosystem is called HyperSuite. Its major advantage is a high-level mission-planning environment: operators express operational intent, and the platform handles the signal processing beneath it.
Mission-oriented configuration
Operators describe what to monitor, geolocate, or analyze. The platform derives the signal processing.
Shared workflows
HyperMon Planner, HyperLoc Planner, and HyperCSM Planner share nearly identical workflows and interfaces.
No DSP expertise required
Unlike traditional DSP software, operators configure missions rather than algorithms — the learning curve stays shallow.
One unified experience
A common philosophy across every HyperSuite application reduces training, deployment time, and operational risk.
Shared planning layer
Mission Planner
Satellites · transponders · stations · tasks
HyperMon
HyperLoc
HyperCSM
Standalone tools
HyperStream
HyperSim
HyperSpectrum
The shared planner workflow drives HyperMon, HyperLoc, and HyperCSM. Learn one, operate all — training time and deployment risk drop accordingly. HyperStream, HyperSim, and HyperSpectrum operate as standalone tools alongside the suite.

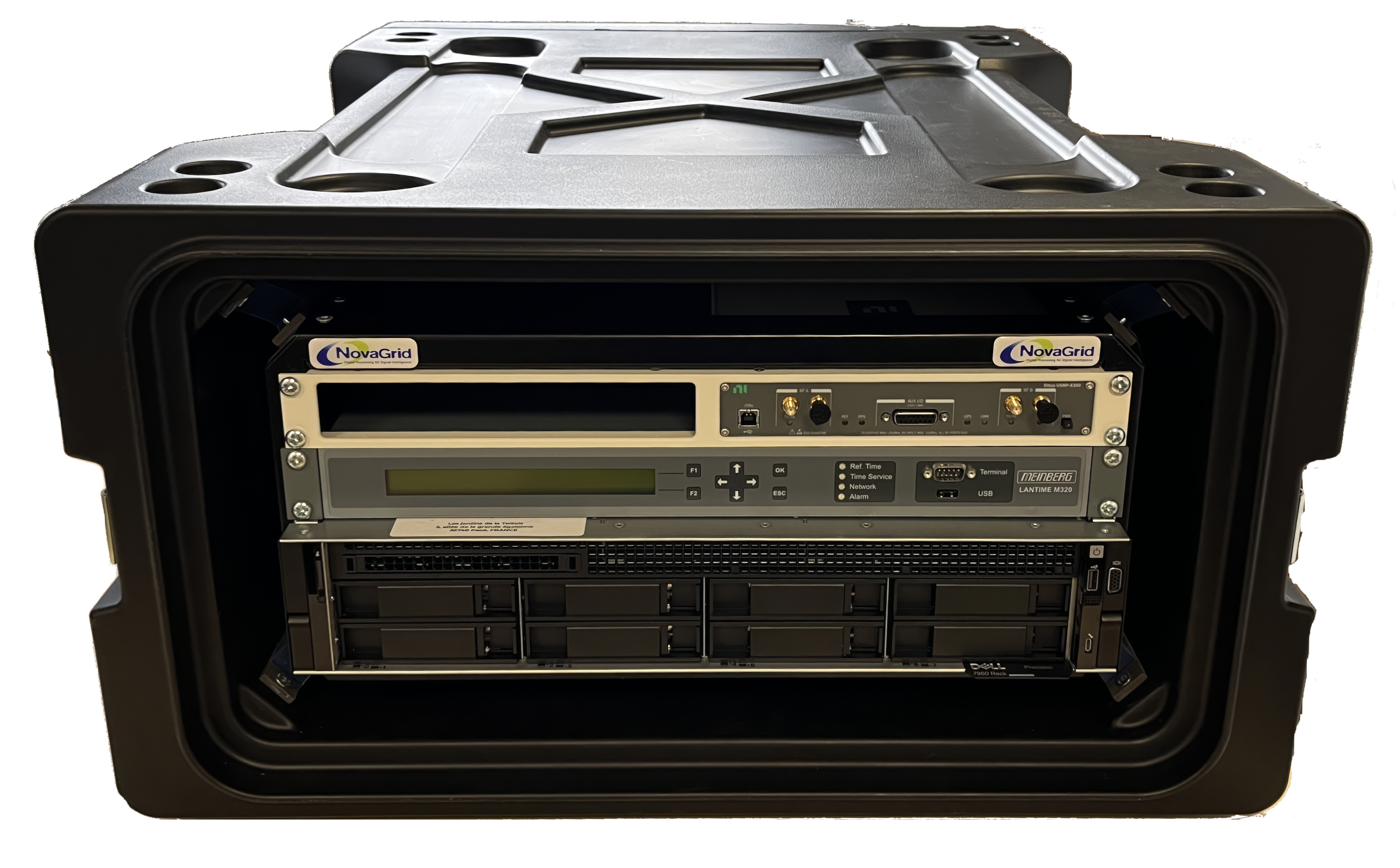

Hardware solutions Since 2015
Turnkey systems,
deployable in hours.
Each system combines optimized COTS hardware, preconfigured HyperSuite software, calibration, installation, and remote support. Connect antenna feeds and network, describe the station, and operate remotely from any workstation.
Why NovaGrid
Defense-grade engineering, end to end.
Blind signal processing, AI-assisted analysis, high-performance computing, and integrated hardware — backed by expert support and a scalable architecture.
20+
Years of experience
Founded in 2002, advancing blind DSP and SIGINT for more than two decades.
0dB
Detection floor
Blind detection of carriers down to 0 dB C/N, with sub-threshold sensitivity.
4 x 80MHz
Calibrated bandwidth
Calibrated RF processing for accurate measurement across the full acquisition band.
3domains
Satellite · HF · Tools
One ecosystem spanning satellite, terrestrial HF, and specialist software tools.
Product showcase
Built for mission-critical operations.
Every product in the HyperSuite ecosystem, engineered for defense organizations, intelligence agencies, satellite operators, and spectrum regulators.
Satellite
HyperMon
Automatic and blind signal analysis for satellite communications.
- Modulation, coding & MAC identification
- Symbol rate, SNR, Eb/N₀ estimation
- Carrier-under-carrier detection
Satellite
HyperLoc
Passive hyperbolic geolocation of satellite-relayed transmitters.
- TDOA / FDOA measurements
- Co-orbit estimation & tracking
- Reference-free operation
Satellite
HyperCSM
2D carrier & spectrum monitoring for non-cooperative environments.
- True time-frequency analysis
- Smart & agile jammer detection
- Scalable to redundant NOCs

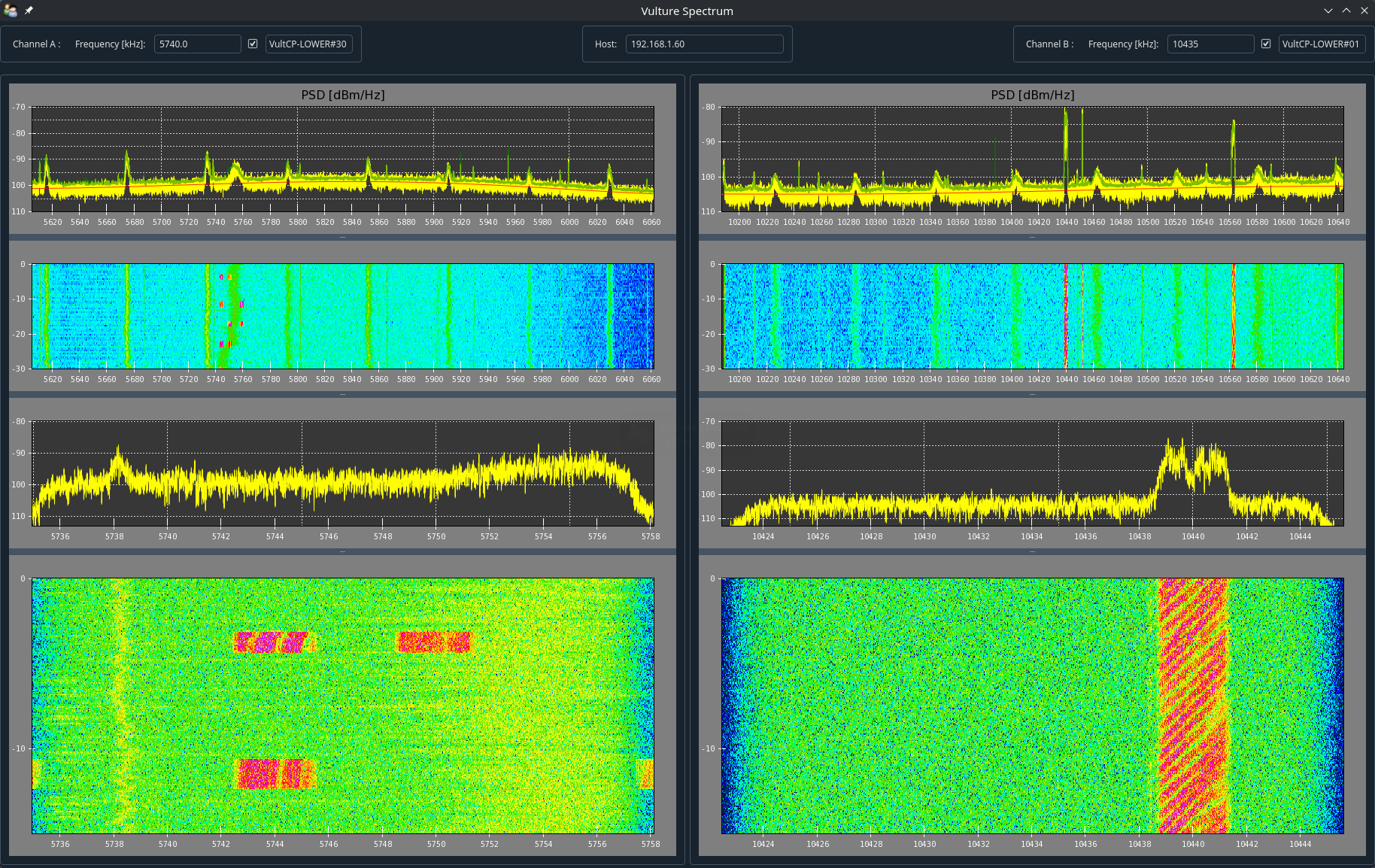

Terrestrial
Vulture
Real-time full HF 3–30 MHz massive monitoring and interception.
- 63 wideband search channels
- 2,016 real-time subchannels
- Decoding at ≈ 200 ms latency
Software
HyperStream
Bitstream analysis and protocol discovery beyond demodulation.
- FEC scheme identification
- Pattern & sync detection
- Protocol reconstruction

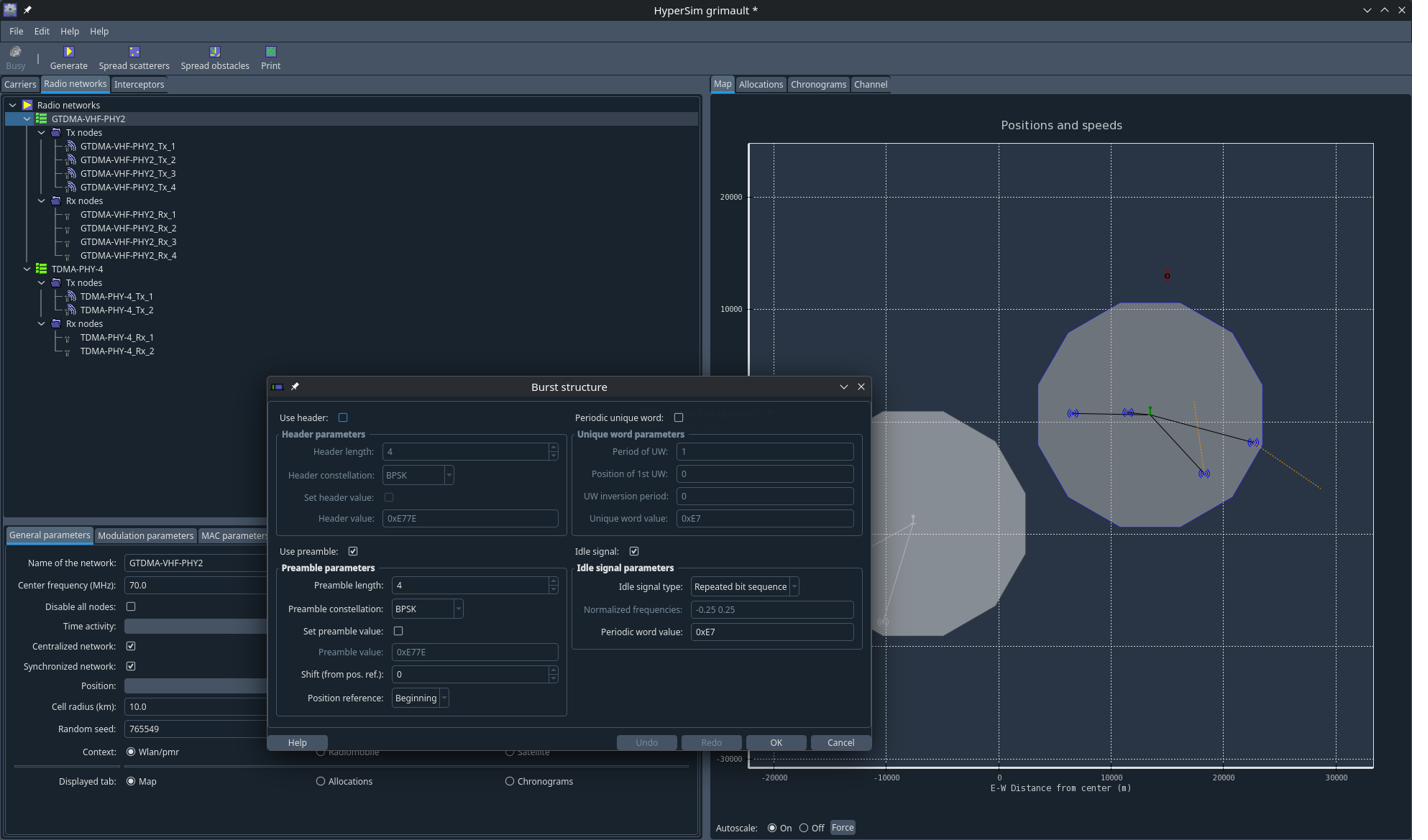

Software
HyperSim
Complex radio-scene simulation with full PHY and MAC modelling.
- Multiple coexisting networks
- Realistic propagation & DF
- Receiver & noise modelling
Get in touch
Understand increasingly complex radio environments.
Talk to NovaGrid about detection, analysis, passive geolocation, and spectrum monitoring for your mission.
